The Playground

The Playground is a web app built into ignis-server and served at /ui/, on the same port as the API: open http://127.0.0.1:8000/ui/ once the server is up. It is the quickest way to see what ignis does, and it is built to show its work: every reply carries the figures the browser measured, subagents run on their own lanes in front of you, a decision shows the whole distribution behind its answer, and the Monitor draws the server’s own metrics as they move.

Nothing in it is a private API. Every view talks to the same /v1 routes a client of yours would, so each page of this section names the request a control sends: what you click in the Playground is what you can script.

The views

The header switches between six views. The chat stays mounted under the others, so a reply keeps streaming while you look at the Monitor, and a listening in Transcribe goes on whichever view shows.

View	What it is for	What it asks the server	Page
Playground	Chat with the model: reasoning, tools, subagents, pictures in the prompt, a workspace of files the model and you work on in a panel beside the chat, several sessions	/v1/responses over a WebSocket, or /v1/chat/completions	Chat, Settings, Tools and agents, Sessions
Decide	Ask many questions over one piece of evidence, answered from one prefill with nothing generated	POST /v1/decide	Decide
Image	Make and edit pictures with the image model, step by step	/v1/images/generations, /v1/images/edits	Image studio
Transcribe	Write a conversation down, from the microphone, a call or a file, with its speakers	/v1/realtime?intent=transcription over a WebSocket	Transcribe
Monitor	The server’s Prometheus metrics, drawn live: load, latency, the VRAM plan, reuse, speculation	GET /ui/metrics	Monitor
Server	The loaded model, the models a switch can go to, and the running configuration as a form	/v1/models, /v1/models/switch, /v1/config	Server

The Monitor tab appears only while the server serves metrics (server.metrics, on by default). Below 640 px wide the tabs become one menu, and below 1024 px the side columns of the chat, Decide, Image and Transcribe views open as drawers from the header.

The header

Left to right: the flame, which burns while a reply streams or a model loads; the view tabs; the model status (the model’s id with a green square when it serves, Loading… or Switching to… while it does not, · unloaded in grey after an idle unload); in the chat, a chip with how many requests are running and the server’s token rate, which opens the Monitor; while a Transcribe listening is under way, its state and time, which open that view; Memory, the notes the model keeps about you (Tools and agents); and Lock while an API key is stored.

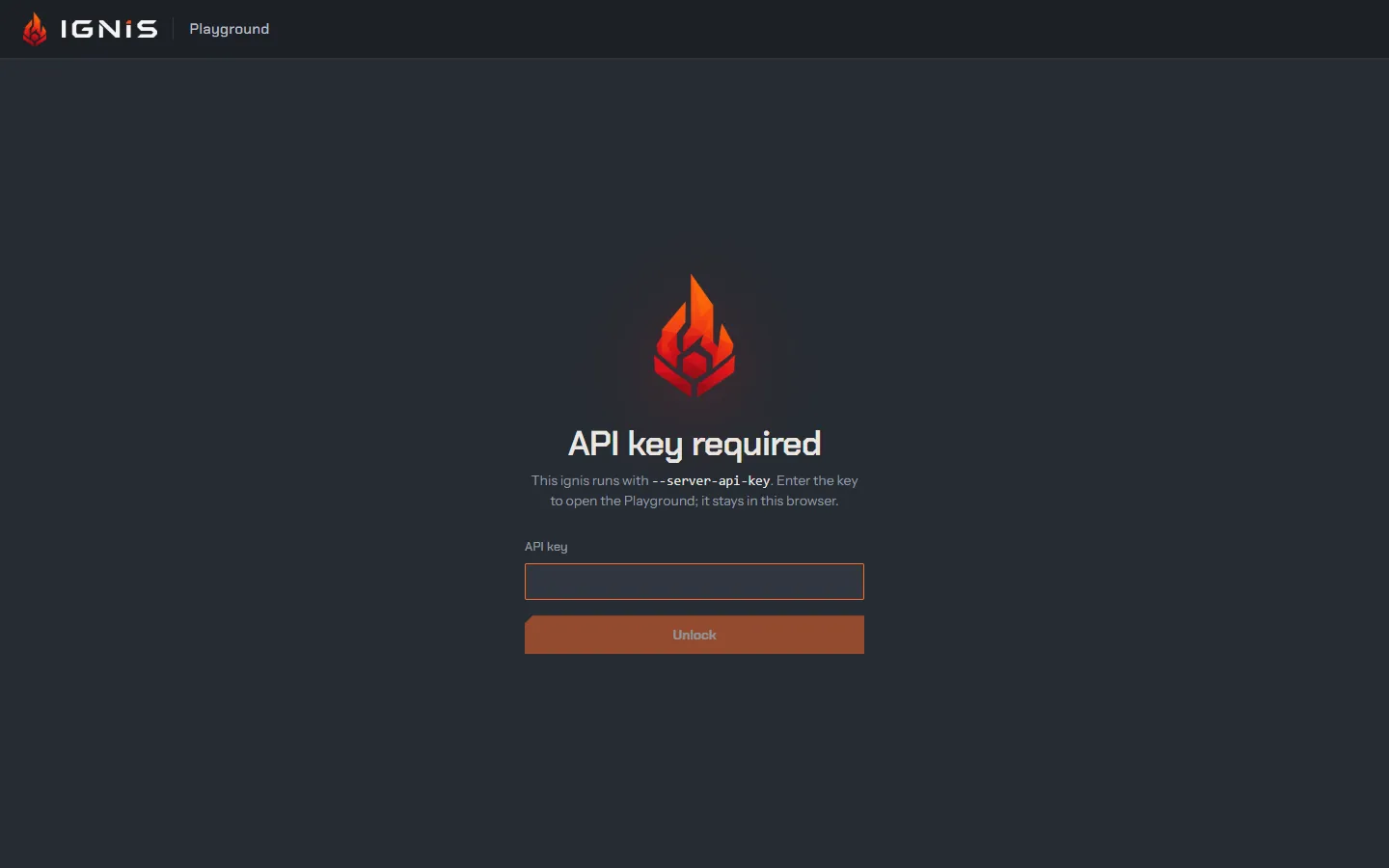

An API key

When the server runs with a key (access), the first /v1 request answers 401 and the page asks for it. The key is checked with GET /v1/models, kept in this browser (localStorage), and sent on every request as Authorization: Bearer; the WebSocket offers it as a subprotocol. Lock forgets it.

What the page keeps

The chat’s sessions, the Decide tab’s decisions, the Image view’s sessions and pictures and the Transcribe view’s transcripts are stored in this browser (IndexedDB) and come back after a reload; nothing is stored on the server. Settings are not stored, apart from the three marked stored in Settings: a reload puts the defaults back. The details, and what each key holds: Sessions and storage.

Turning it off, building it in

--server-ui false (config server.ui) stops serving it. The Playground is embedded into ignis-server only if web/dist exists when cargo builds it; cargo never runs npm. The release archives and the container image have it. From a checkout, build the frontend first (it needs Node.js), then the server:

npm --prefix web ci
npm --prefix web run build
cargo build --release -p ignis-server

A server built without web/dist still serves /ui/, as a page with these instructions.

For frontend work, npm --prefix web run dev serves the page with hot reload and proxies /v1 and /ui/metrics to a running server (IGNIS_URL, default http://127.0.0.1:8000). npm --prefix web run dev:mock answers from a fake engine instead, so no GPU is needed; it has no WebSocket, no image routes and no idle unload, and its replies are canned.

Where to go next

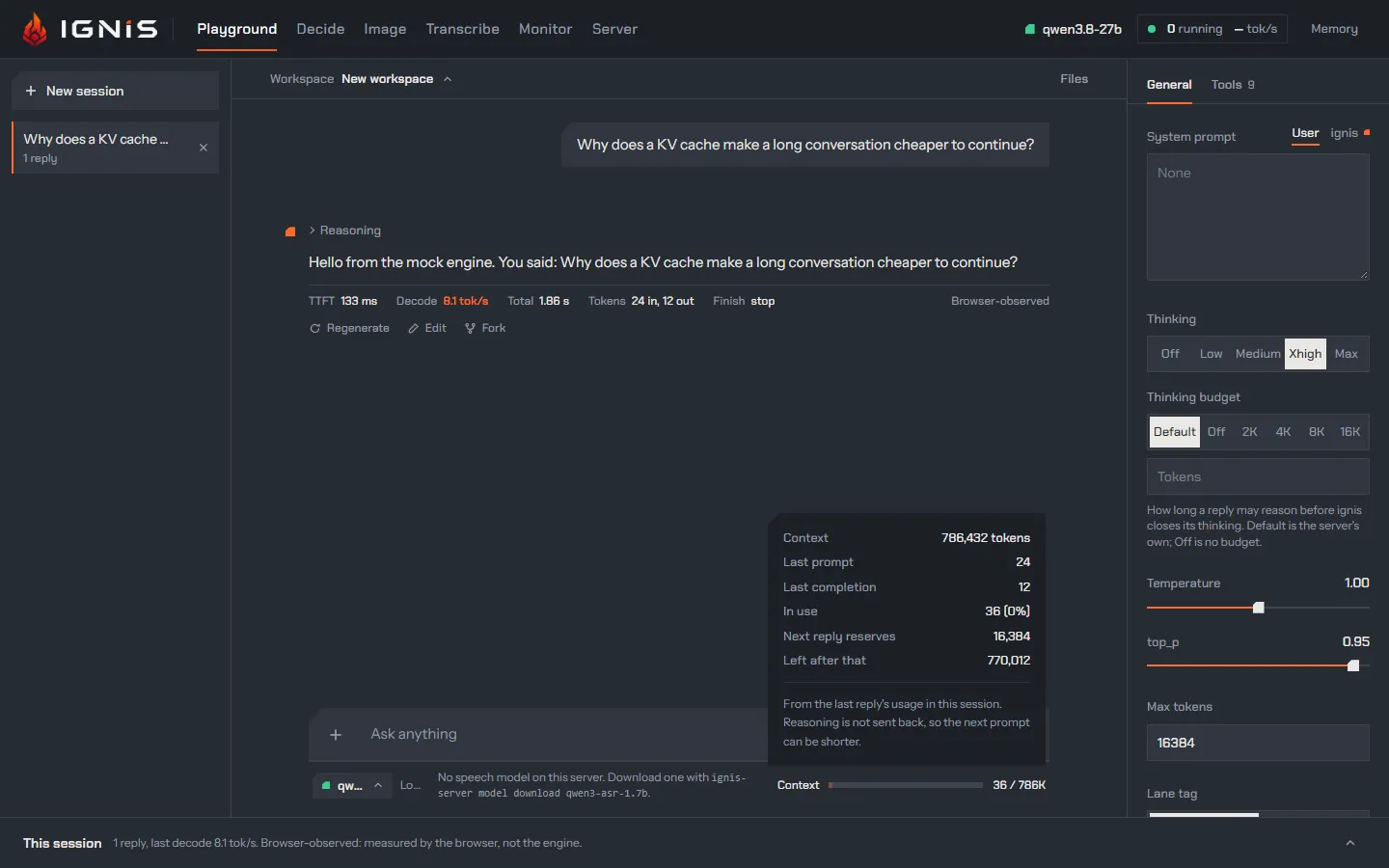

• Chat: a reply, its figures, the model picker, the context meter.
• Tools and agents: subagents on agent lanes, the web, code, files, pictures.
• Why ignis: the engine features these views make visible.
